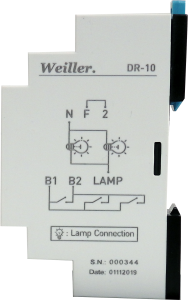

DR-10 Impulse Switch (Latching Relay 1NO)

Anasayfa » Products » Bistable Switch

Bistable Switch, News

DR Series Impulse Switch

Wide Application Range
*Solid Quality*
Zero Consumption During Standby
Technical Specifications:
Operating Voltage(Un)	: 230VAC
Operation Frequency (f)	: 50hz
Operation Temperature	: -20/.. +55°C
Operating Power	: <4VA
Connection Type	: Terminal Connection
Power Consumption	: 3vA max
Maximum Current (ith)	: 16A
Operation Current	: 10A
Contact	: 1NO-5A/250V AC (Resistive Load)
Certification	: CE

Description:
Small switch on coil consumption No hold coil consumption Coil disconnection with selector switch for maintenance purposes Mounting on 35 mm rail Sealing terminal covers Solid Quality-MADE IN TURKEY The latching relay converts an impulse coming from a button into a permanent switching status. If the latching relay is switched off, it will be switched on by an impulse. If the latching relay is switched on, it will be switched off by an Impulse.

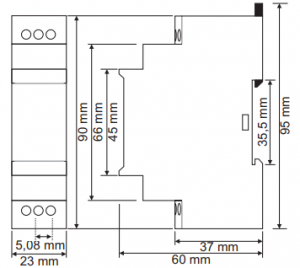

Dimensions:

For further information, info@weiller.com
